MPO/MTP® Quick Introduction
Quick introduction to MPO/MTP
In a modern data center, you don't have space to plug in 1,000 individual LC duplex cables. To save space and time, we use MPO (Multi-Fiber Push-On) connectors.

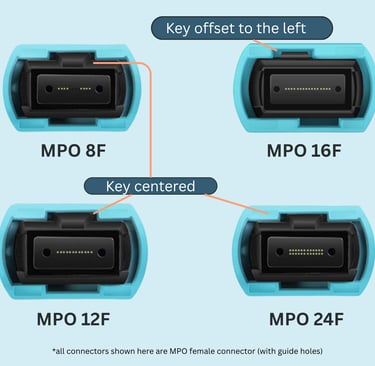

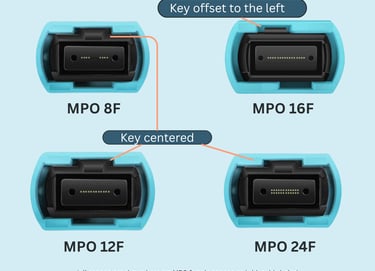

What it is: A single connector that houses multiple fibers (usually 8, 12, 16 or 24) in a single rectangular ferrule.
MTP vs. MPO: You will hear both. MPO is the generic name (the "soda"), while MTP® is a high-performance brand name by US Conec (the "Coca-Cola") with better mechanical parts for lower signal loss.
The "Base" System:
Base-12: The traditional standard. Uses 12 fibers. Good for 10G/40G.
Base-8: The modern preference for 40G/100G/400G. Since most high-speed transceivers use 8 fibers (4 for sending, 4 for receiving), Base-8 eliminates "wasted" fibers that occur in Base-12 systems.
The Modern Trend Update: The Move to MPO-16 for 1.6T Networks In 2026, with the rollout of 1.6 Terabit Ethernet for AI clusters, we are seeing a massive shift toward MPO-16. Previously, MPO-12 and MPO-24 were the kings. However, the new 800G and 1.6T transceivers are optimized for 16-fiber rows. If you are designing a data center today in 2026, sticking only to Base-12 is becoming an "old school" move that leads to complex mapping issues later.
